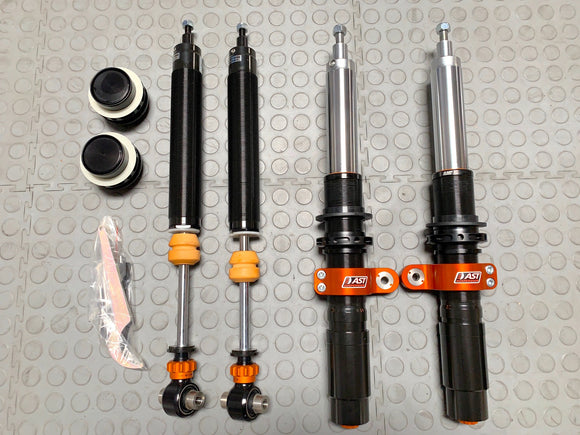

AST 5100 Coilovers, BMW F2X/F3X RWD Models Only, Shocks Only No Springs

AST 5100 Coilovers, BMW F2X/F3X RWD Models Only, Shocks Only No Springs

  • $999.00
  • Save $2,078


AST Suspension Liquidation Sale - Free Shipping

Last Two Sets Available

Brand New - AST 5100 Coilovers, BMW F2X/F3X RWD Models Only, Shocks Only No Springs

PN:  ACU-B2101S

The 5100 Series shock absorbers for the 2015+ BMW 328i LCI 5 Bolt (F3X) utilize inverted / upside down technology. The inverted design is race proven technology and produces an extremely strong damper, providing better suspension geometry under heavy lateral and braking loads as seen in a road and track environment.

The 5100 Series shock absorbers give your car a better performance than the standard twin tube design. With the 5100 Series suspension you can adjust rebound with one knob. The adjust platform allows you to adjust the ride height of your car. AST suspension shock bodies are specially designed to keep maximum stroke, even with a lower ride height.

HOW A MONOTUBE DESIGN WORKS?

Monotube design is essential for performance. The oil and nitrogen are separated by a floating piston, and allows the use of a larger piston, increasing the damper performance and sensitivity felt by the driver, all this added together produces more grip, gives more control and driver feedback from your vehicle.

WHAT IS A REBOUND ADJUSTMENT?

Rebound controls the rate of extension of your shock absorber. By changing the rebound you can directly change the characteristics of the vehicle.

FEATURES

  • Floating piston design with high pressure nitrogen means no cavitation around the piston.
  • 14mm diameter internal shaft.
  • 44.5 mm diameter shaft struts, inverted.
  • Steel cylinder body shocks, inverted.
  • High end, track ready suspension.
  • Rebound adjustable ('Singles').
  • Low friction seal.
  • Adjuster knobs permanently mounted on the dampers.
  • Designed to use OEM top mounts.
  • Rubber bushings for 'eye' shock mounts.
  • Includes springs.
  • Rebuildable.
  • Optional spherical top mounts.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Optional custom valving.

PRODUCT SPECIFICATIONS

  • Part Number: ACU-B2101S
  • Product: AST Suspension 5100 Series 1-Way Coilovers
  • Adjustment: 1-Way
  • System: Front Coilover, Divorced Rear Coilover
  • Product Note:
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: Clamp McPherson strut / Rear: Eye 2 pin strut
  • Model Years: 2015+
  • Make: BMW
  • Model: 328i
  • Chassis: F3X
  • Spring Kit: Included
  • Top Mounts: Front And Rear Are Not Included
  • Optional 1 Front Top Mounts (Additional Cost): TMA-B09-B1-20F - Camber adjustable (LCI 5 bolt from 01-01-2015. Will only fit with race springs.)
  • Optional 2 Front Top Mounts (Additional Cost): Not Available
  • Optional Rear Top Mounts (Additional Cost): S 099 009 - Solid top mounts (no camber adjustment)
  • Adjustable Front Droplinks (Additional Cost): Part Number: DLA-BMW4-S
  • Adjustable Front Droplinks Required? Yes
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available (Additional Cost): Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available (Additional Cost): Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: Works with OE top mounts.

VEHICLE FITMENT

  • 2015 BMW 328i LCI 5 Bolt (F3X)
  • 2016 BMW 328i LCI 5 Bolt (F3X)
  • 2017 BMW 328i LCI 5 Bolt (F3X)
  • 2018 BMW 328i LCI 5 Bolt (F3X)
  • 2019 BMW 328i LCI 5 Bolt (F3X)
  • 2020 BMW 328i LCI 5 Bolt (F3X)


    NOTE: ALL AST Clearance kits are final and sold "As-is" with no warranty.  No returns, exchanges or refunds.
