Brembo GTR Big Brake System | (F) 6-Piston Billet Monobloc Calipers | 355x32mm (14") 2-Piece Discs - FRONT

  • $9,095.00


Free Shipping to Lower 48 States

PN: GT-R-1M-.8069A

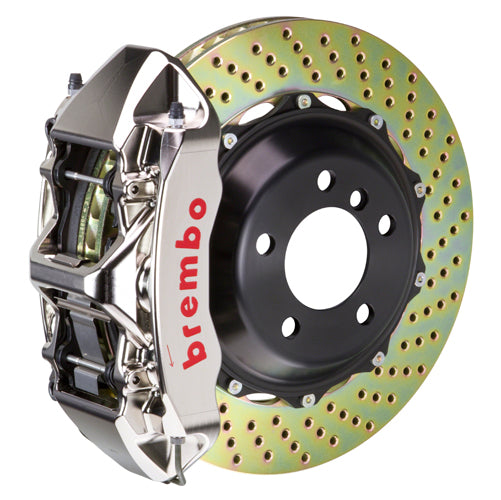

Cross Drilled
Nickel Plated
1M1.8069AR
    TY1
    Nickel Plated
    1M2.8069AR

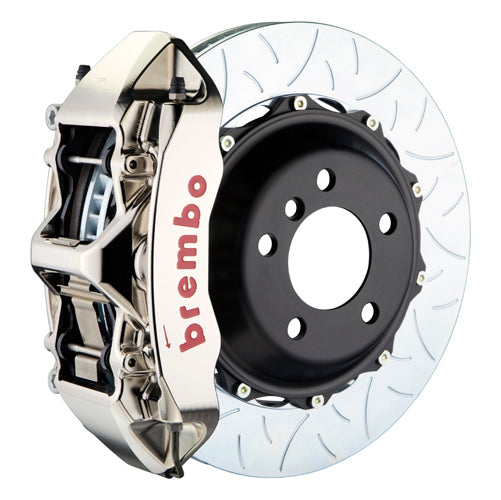

      TY3
      Nickel Plated
      1M3.8069AR


        The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

        The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

        Product Overview
        Product Description: (F) 6-Piston Cast Monobloc Calipers | 355x32mm (14'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

        Front or Rear System Shown: Front

        Intended Use:

        System Dynamics:

        Notes: For applications for PCCB equipped models, please contact your distributor
        Caliper
        Caliper Body: Cast Monobloc Radial Mount
        Caliper Piston Configuration: 6-Piston
        Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert
        Disc
        Disc Type: Cross Drilled / TY1 / TY3
        Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
        Disc Diameter: 355mm
        Disc Width (Measurement): 32mm
        Disc Air Gap (Measurement): 16mm
        Disc Annulus (Measurement): 54mm
        Disc Construction: 2-Piece Disc Assembly
        Disc Vane Design (Measurement): Vented Curved 72 Vane
        Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring
        Friction Material
        Pad Compound: Brembo High Performance FM1000
        Pad Volume / Surface Area: 94.5 | 84
        Included Hardware
        Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
        Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

        Application:

        • 2022+ BRZ
