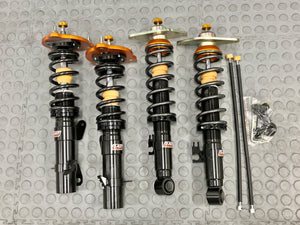

AST 4100 Coilovers - Mini Cooper R56 Coilover

AST 4100 Coilovers - Mini Cooper R56 Coilover

  • $1,449.00
  • Save $950


AST Suspension Liquidation Sale - Free Shipping

Only One Available

Brand New - Springs and Top Mounts INCLUDED (Standard spring rates 5kg F, 4kg R)

PN: ACS-B1401S

SPORTLINE 1 (4100 SERIES)

The 4100 Series shock absorbers utilise high performance monotube technology:

  • Monotube design shocks absorbers gives your car a better performance than the standard twin tube design, the gas pressure is separated by a floating piston and eliminates cavitation and airation within the oil chamber.
  • The 4100 series shocks allow rebound adjustment with one knob.
  • The adjust platform allows the use to adjust the ride height of your car.
  • AST suspension shock bodies are specially designed to keep maximum stroke, even with a lower ride height and are finished with a KTL coating for an extremely hardwearing finish.

How a Monotube design works?

Monotube design is essential for performance. The oil and nitrogen are separated by a floating piston, and allows the use of a larger piston, increasing the damper performance and sensitivity felt by the driver, all this added together produces more grip, gives more control and driver feedback from your vehicle.

What is a rebound adjustment?

Rebound controls the rate of extension of your shock absorber. By changing the rebound you can directly change the characteristics of the vehicle.

Technical specifications:

  • Floating piston design with high pressure nitrogen eliminates cavitation around the piston.
  • 22mm / 14mm diameter shaft struts, non-inverted.
  • Steel cylinder body shocks, non-inverted.
  • Rebound adjustable (''Singles'').
  • Low friction seal.
  • Adjuster knobs permanently mounted on the dampers, no need for special tools.
  • Rubber bushings for ''eye'' shock mounts.
  • Optional spherical top mounts.
  • Optional DDP piston (double digressive).
  • Rebuildable and fully serviceable.
  • Optional custom valving.



NOTE: ALL AST Clearance kits are final and sold "As-is" with no warranty.  No returns, exchanges or refunds.
