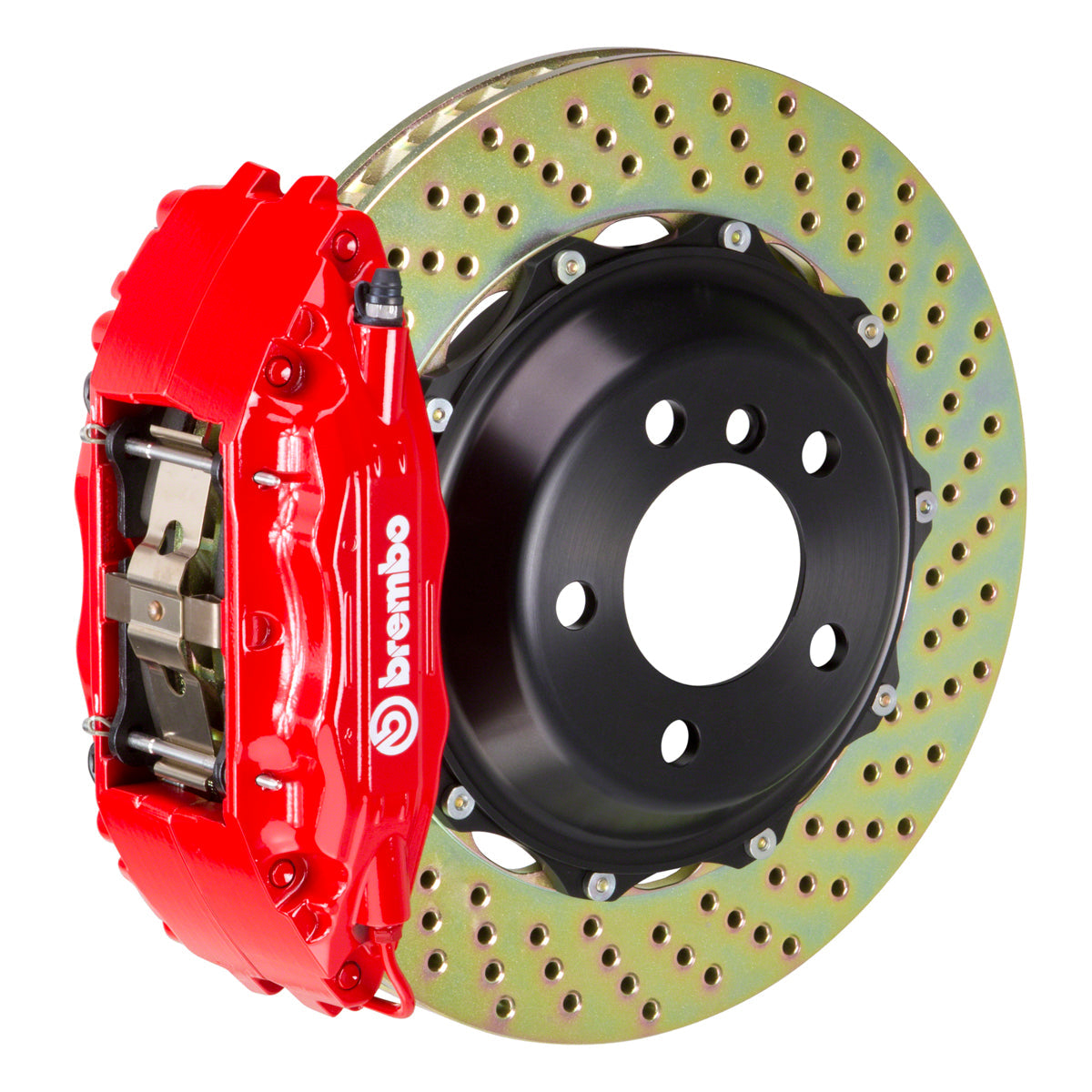

Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT

  • $3,995.00

Free Shipping to Lower 48 States

PN: GT-1B-.8016A

Cross Drilled
  • Red
  • Black
  • Silver
  • Red
  • Black
  • Silver
  • Red
  • Black
  • Silver

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.



Product Overview
Product Description: (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Wheel Fitment:

Front or Rear System Shown: Front

Intended Use:

System Dynamics:
Notes: For applications for PCCB equipped models, please contact your distributor


Caliper Body: Cast 2-Piece Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot


Disc Type: Cross Drilled / TY1 / TY3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 355mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring


Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1


Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


  • 1999 - 2004 Carrera C2
  • 2006 - 2012 Cayman 987
  • 2006 - 2012 Cayman 987 S (Excluding PCCB)
  • 1997 - 2004 Boxster 986
  • 1997 - 2004 Boxster 986 S
  • 2005 - 2012 Boxster 987
  • 2005 - 2012 Boxster 987 S / Spyder (Excluding PCCB)
