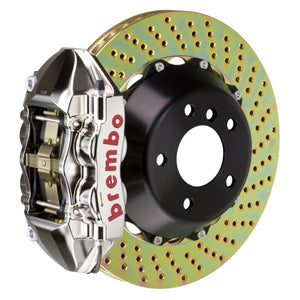

Brembo GT Big Brake System | (F) 4-Piston Billet Monobloc Calipers | 365x29mm (14.4") 2-Piece Discs

Brembo GT Big Brake System | (F) 4-Piston Billet Monobloc Calipers | 365x29mm (14.4") 2-Piece Discs

  • $7,995.00


Free Shipping to Lower 48 States

PN: 1P1.8519AR

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.






The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview
Product Description: (F) 4-Piston Billet Monobloc Calipers | 365x29mm (14.4") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Front or Rear System Shown:Front

Intended Use:

System Dynamics:



Caliper
Caliper Body: Billet Monobloc Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert



Disc
Disc Type: Cross Drilled
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 365mm
Disc Width (Measurement): 29mm
Disc Air Gap (Measurement): 14mm
Disc Annulus (Measurement): 59mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring



Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Application: 2008 - 2013 C30

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
