Brembo GT Big Brake System | (F) 4-Piston Monobloc Calipers | 336x28mm (13.2") 1-Piece Discs

  • $2,195.00


PN: GT-1P_.7001A

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.






The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview

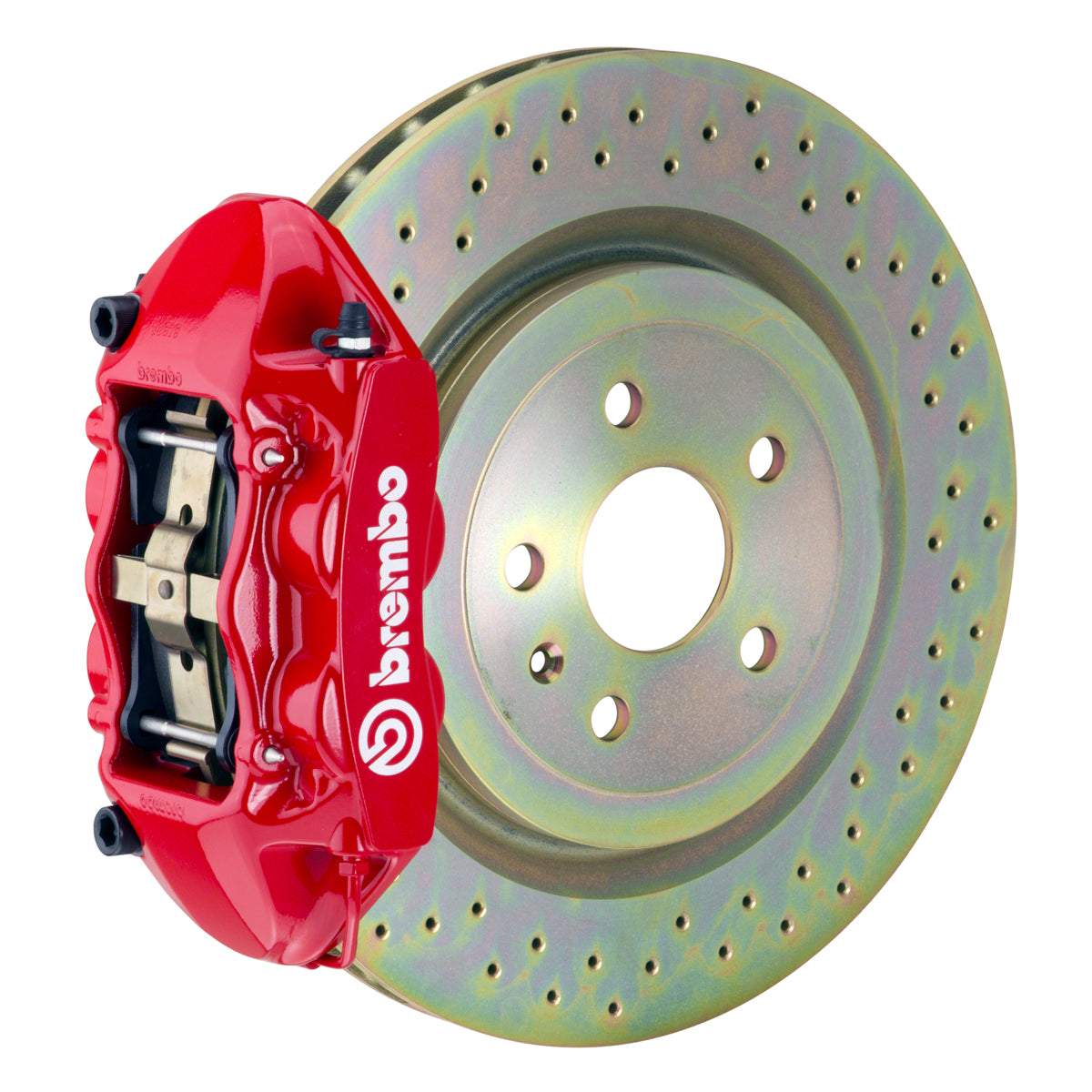

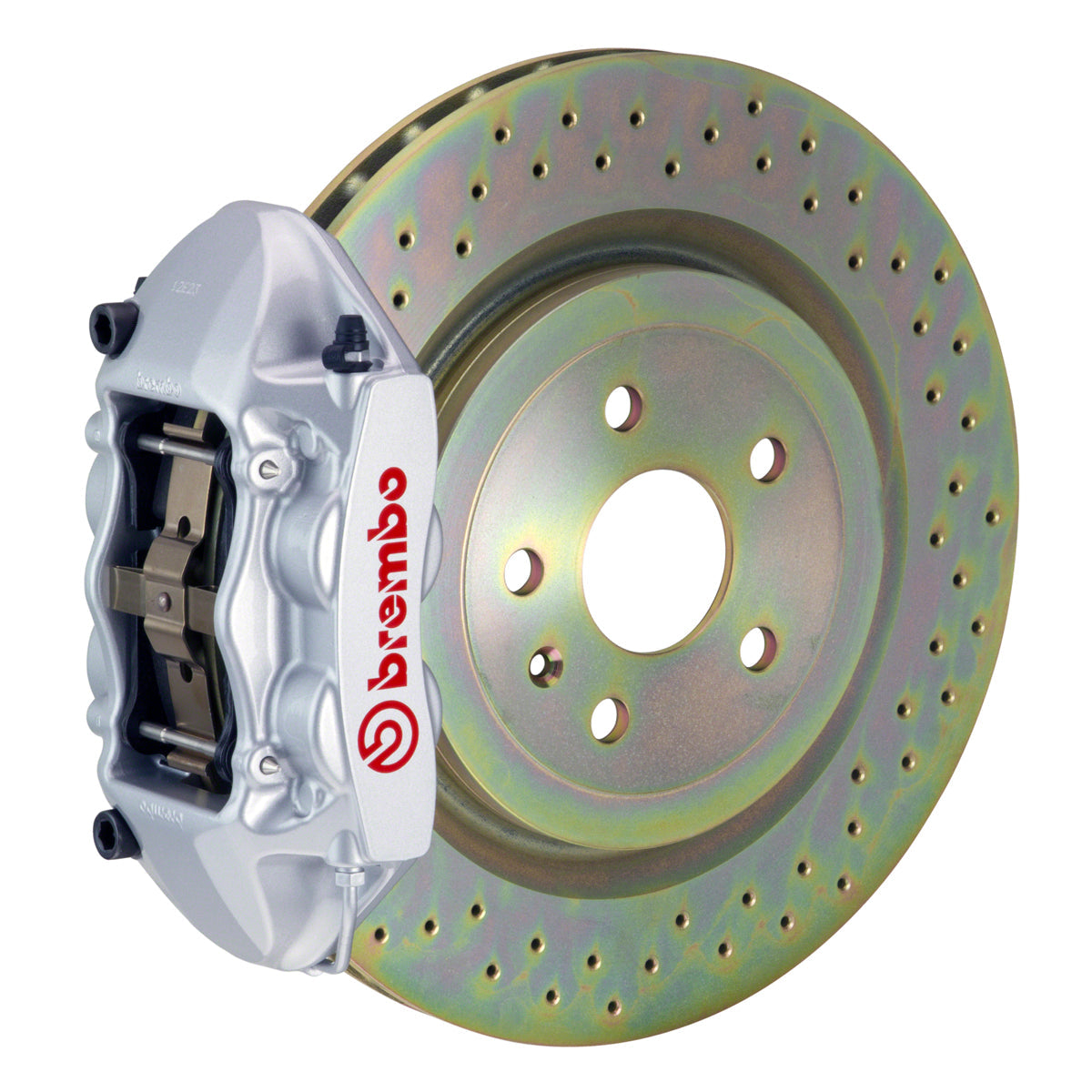

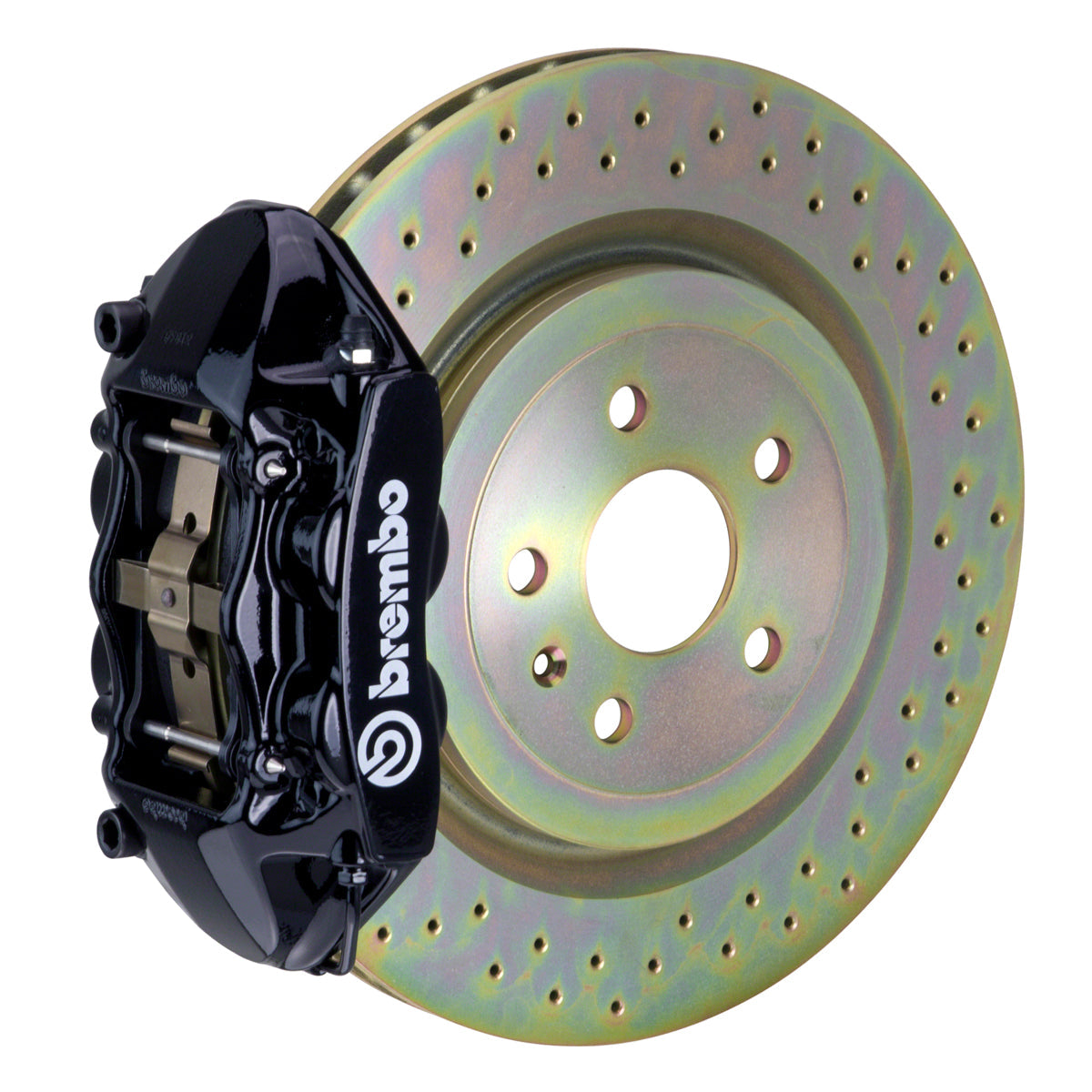

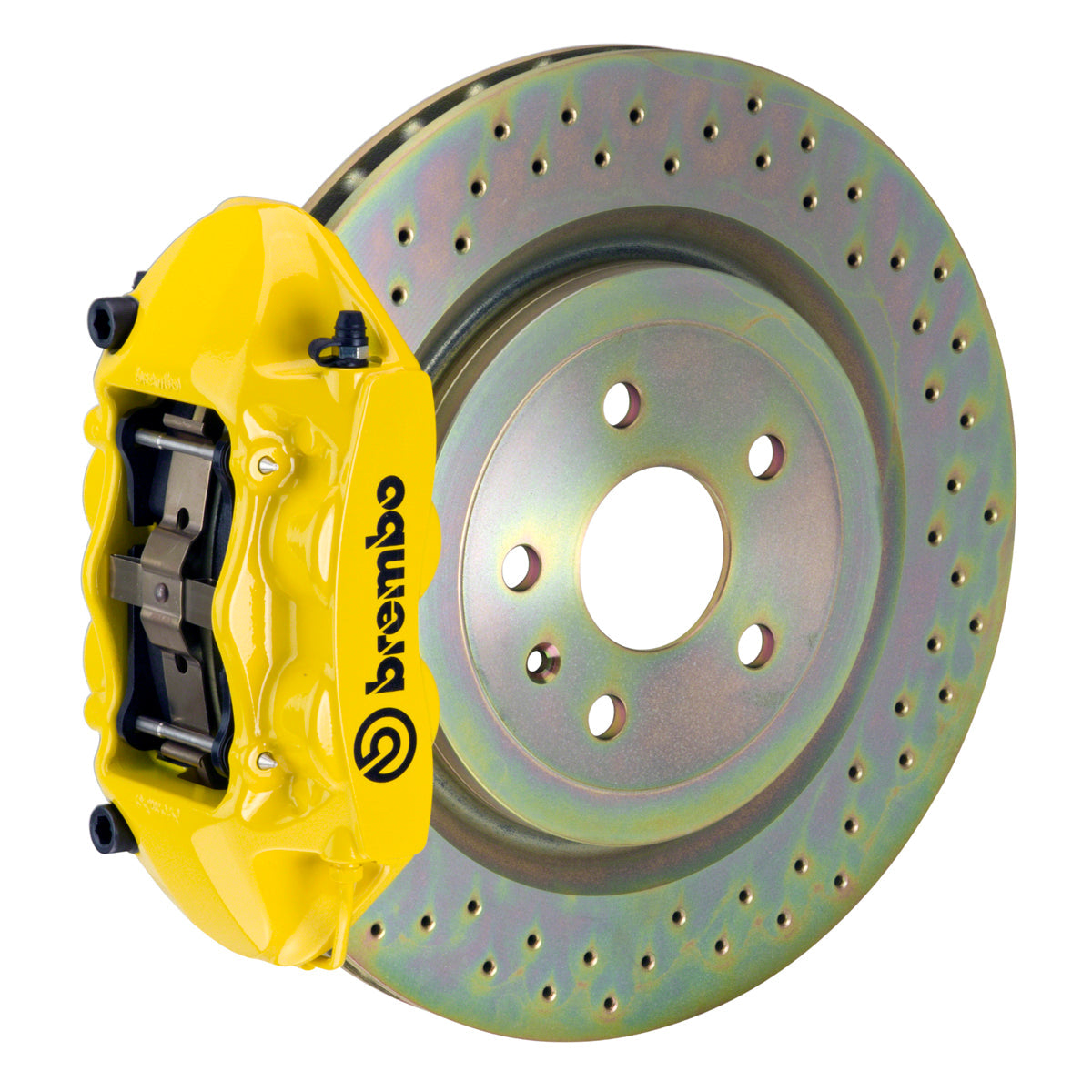

Product Description: (F) 4-Piston Monobloc Calipers | 336x28mm (13.2") 1-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown: Front
Intended Use:
System Dynamics:



Caliper
Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot



Disc
Disc Type: Cross Drilled
                   Slotted
Disc Material/Finish: High Carbon / Corrosion Resistant Plating
Disc Diameter: 336mm
Disc Width (Measurement): 28mm
Disc Construction: 1-Piece Disc
Disc Vane Design (Measurement): Vented Pillar Vane
Disc To Hat Mounting System: N/A



Friction Material
Pad Volume / Surface Area: 76.1 | 62.1



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Application: 2008 - 2013 C30
