Brembo GT Brake System | 6-Piston Monobloc Calipers | 355x32mm (14") 2-Piece Discs - FRONT

  • $4,595.00


Free Shipping to Lower 48 States

PN: GT-S-1M-.8069A

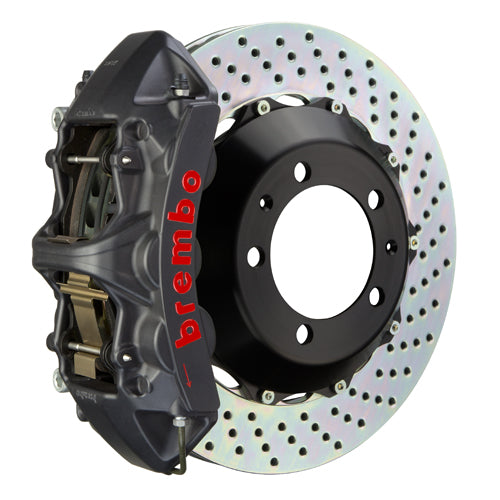

Cross Drilled
  • Black Hard Anodized
    1M1.8069AS
TY1
  • Black Hard Anodized
    1M2.8069AS
TY3
  • Black Hard Anodized
    1M3.8069AS


The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview
Product Description: (F) 6-Piston Cast Monobloc Calipers | 355x32mm (14'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Front or Rear System Shown: Front

Intended Use:

System Dynamics:

Notes: For applications for PCCB equipped models, please contact your distributor
Caliper
Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 6-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert
Disc
Disc Type: Cross Drilled / TY1 / TY3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 355mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 72 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring
Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 94.5 | 84
Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

Application:

  • 2022+ BRZ


      WARNING:
      This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
