Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT

  • $2,295.00


PN: GT-1S_.6003A

Cross Drilled

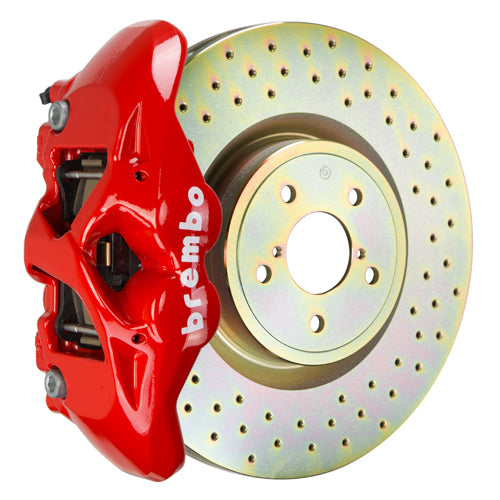

  • Red
    1S4.6003A2

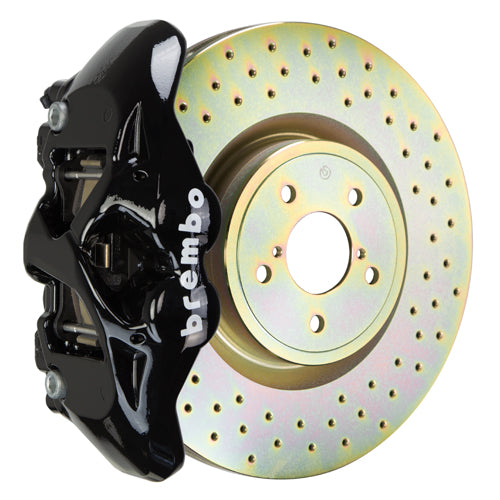

  • Black
    1S4.6003A1

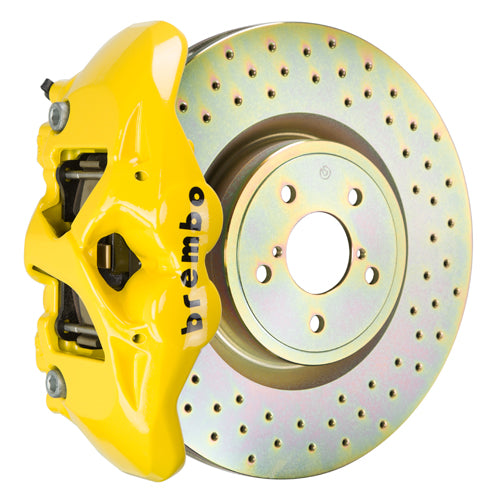

  • Yellow
    1S4.6003A5

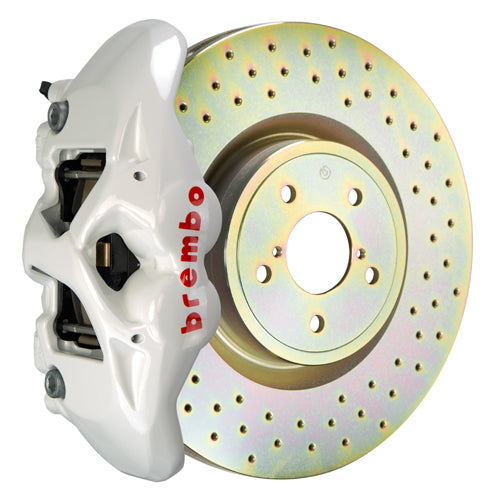

  • White
    1S4.6003A6

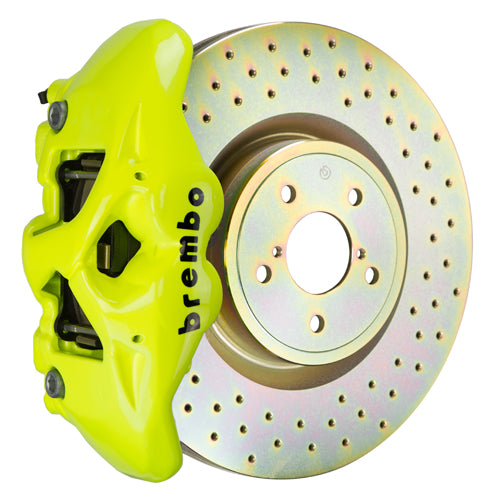

  • Fluorescent Yellow
    1S4.6003A7
TY1

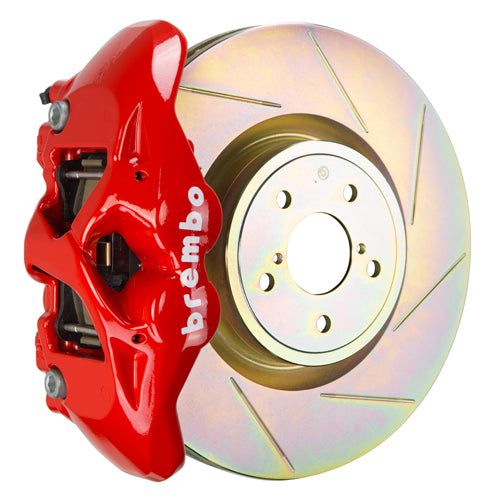

  • Red
    1S5.6003A2

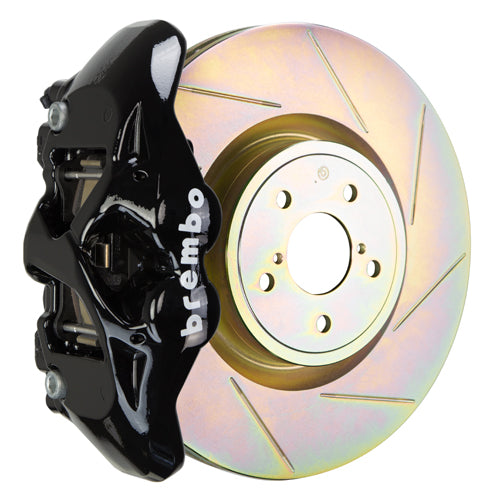

  • Black
    1S5.6003A1

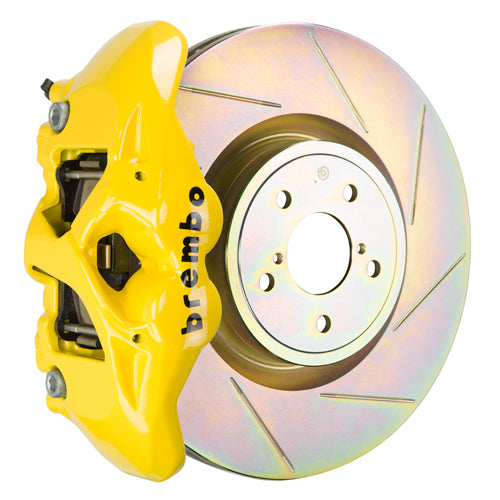

  • Yellow
    1S5.6003A5

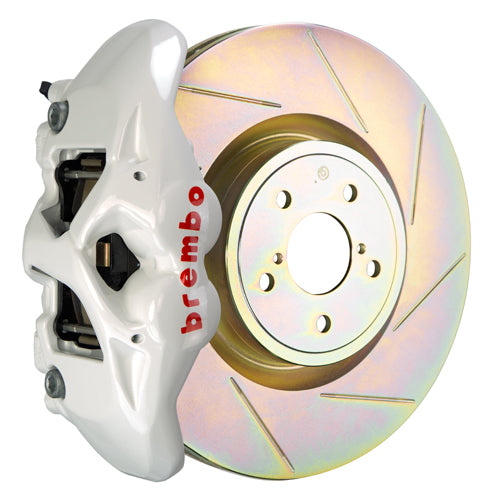

  • White
    1S5.6003A6

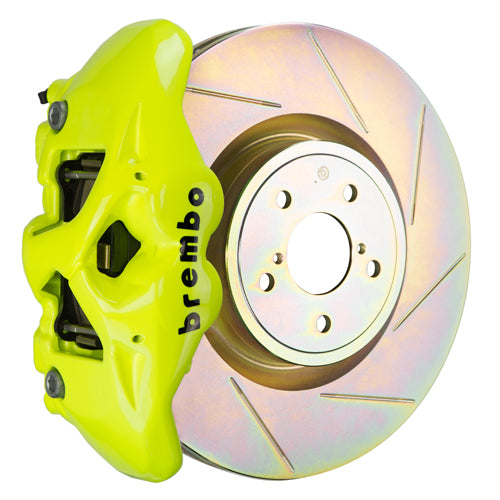

  • Fluorescent Yellow
    1S5.6003A7


The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview
Product Description: (F) 4-Piston Cast Monobloc Calipers | 326x30mm (12.8'') 1-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown: Front
Intended Use:
System Dynamics:



Caliper
Caliper Body: Cast 2-Piece Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot



Disc
Disc Type: Cross Drilled / TY1
Disc Material/Finish: High Carbon / Corrosion Resistant Plating
Disc Diameter: 326mm
Disc Width (Measurement): 30mm
Disc Air Gap (Measurement): 12mm
Disc Annulus (Measurement): 64mm
Disc Construction: 1-Piece Disc
Disc Vane Design (Measurement): Vented Pillar Vane



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Applications: 2022+ BRZ
