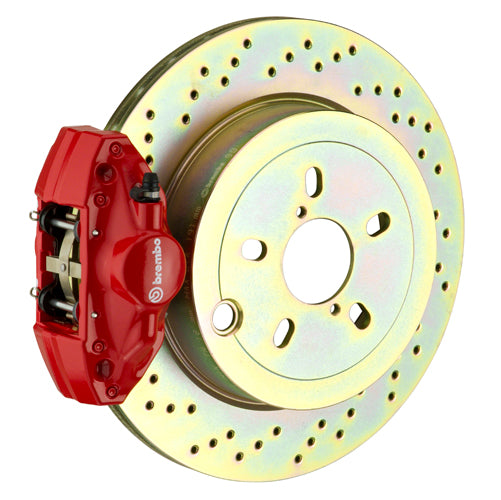

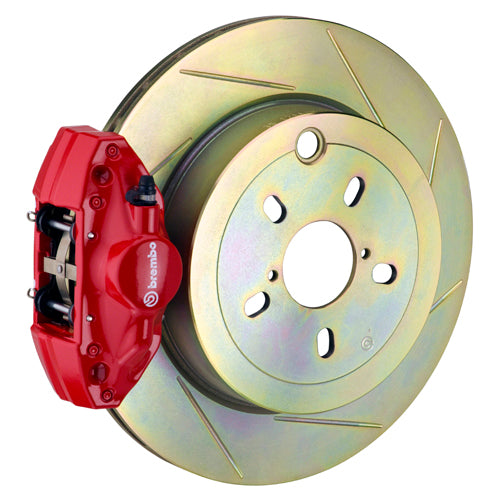

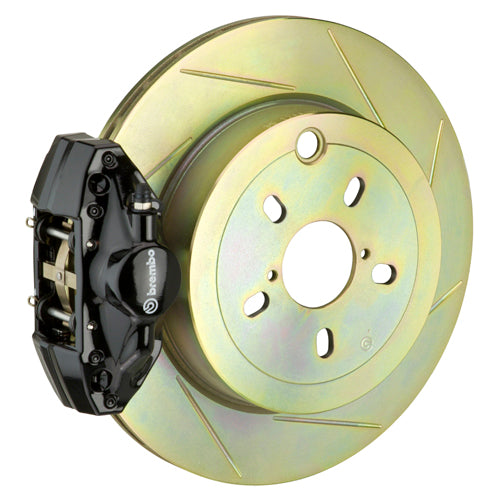

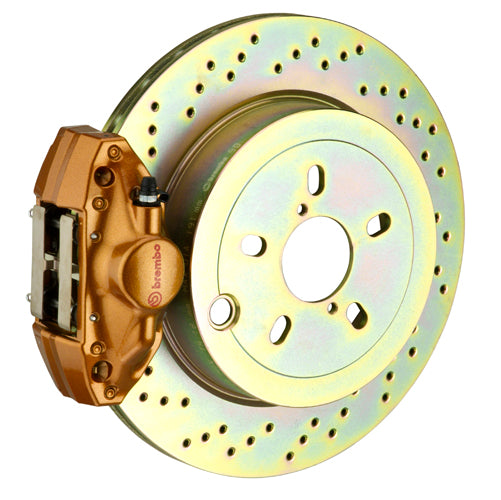

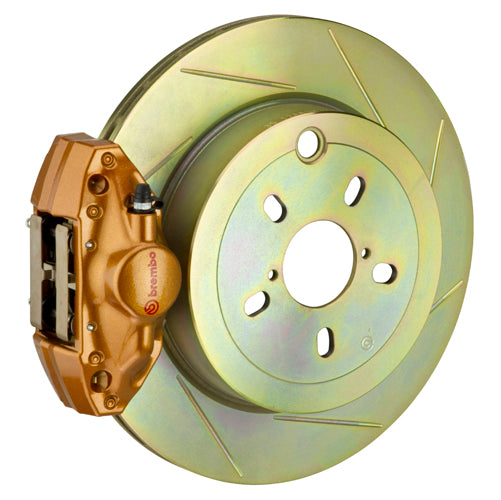

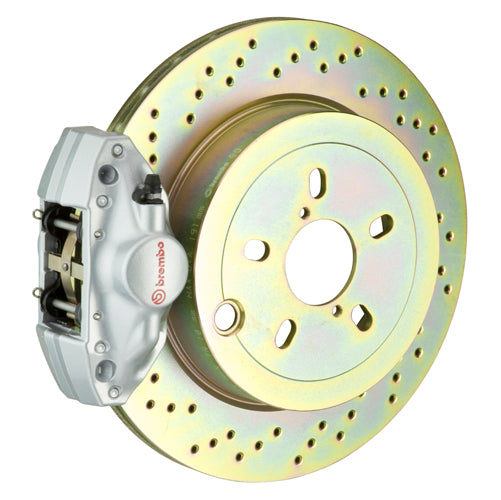

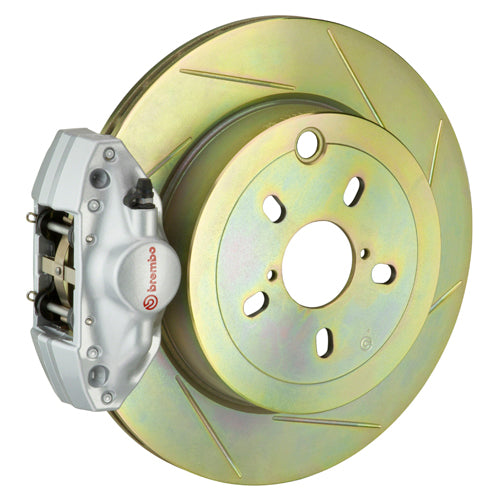

Brembo GT Brake System - 2-Piston | 316x20 mm (12.4") | 1-Piece Discs - REAR

  • $1,995.00

PN: GT-2E_.5003AX

Cross Drilled
  • Gold
  • Red
  • Black
  • Silver
  • Gold
  • Red
  • Black
  • Silver

Mann Engineering partnered with Race Technologies to bring you this unique Brembo Brake System that will fit under our Speedline 17" wheels! No more wheel size upgrade just because you want a big brake kit.

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

This Brembo GT Brake System also fits the Scion FR-S.

Product Overview
Product Description: (R) 2-Piston Calipers | 316x20mm (12.4") 1-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown: Rear
Intended Use:
System Dynamics:


Caliper Body: Cast 2-Piece Axial Mount
Caliper Piston Configuration: 2-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot


Disc Type: Cross Drilled or Slotted
Disc Material/Finish: High Carbon / Corrosion Resistant Plating
Disc Diameter: 316mm
Disc Width (Measurement): 20mm
Disc Air Gap (Measurement): 7mm
Disc Annulus (Measurement): 50mm
Disc Construction: 1-Piece Disc
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: N/A


Friction Material Pad Compound: Subaru OE
Pad Volume / Surface Area: 29.8 | 32.4


Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Please note: Excluding WRX Models with Electronic Parking Brake


  • 2015 - 2021 WRX
  • 2013 - 2020 BRZ
  • 2013 - 2016 FRS
  • 2022 - Current GR86
  • 2022+ BRZ

NOTE: Excluding Models with Electronic Parking Brake
