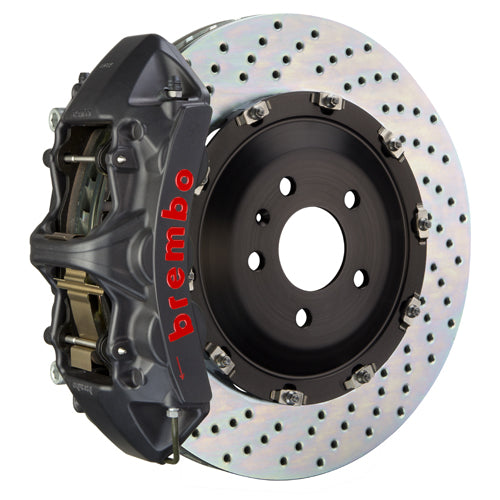

Brembo GTS Big Brake System | (F) 6-Piston Cast Monobloc Calipers | 405x34mm (15.9'') 2-Piece Discs - FRONT

  • $5,495.00


Free Shipping to Lower 48 States

PN: GT-S-1N-.9534A

Cross Drilled
Black Hard Anodized
1N1.9534AS
    TY1
    Black Hard Anodized
    1N2.9534AS
      TY3
      Black Hard Anodized
      1N3.9534AS


        The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

        The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

        Product Overview
        Product Description: (F) 6-Piston Cast Monobloc Calipers | 405x34mm (15.9'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

        Front or Rear System Shown: Front

        Intended Use:

        System Dynamics:

        Caliper
        Caliper Body: Cast Monobloc Radial Mount
        Caliper Piston Configuration: 6-Piston
        Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

        Disc
        Disc Type: Cross Drilled / TY1 / TY3
        Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
        Disc Diameter: 405mm
        Disc Width (Measurement): 34mm
        Disc Air Gap (Measurement): 12mm
        Disc Annulus (Measurement): 62mm
        Disc Construction: 2-Piece Disc Assembly
        Disc Vane Design (Measurement): Vented Curved 48 Vane
        Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring


        Friction Material
        Pad Compound: Brembo High Performance FM1000
        Pad Volume / Surface Area: 107.3 | 95.4
        Included Hardware
        Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
        Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


        Application:

        • 2015 - 2022 Macan S
        • 2015 - 2019 Macan Turbo
        • 2017 - 2022 Macan GTS

        WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
