Cobb Tuning Subaru Aluminum Charge Pipe Kit

Cobb Tuning Subaru Aluminum Charge Pipe Kit

  • $275.00

Free Standard Shipping within the lower 48 states!

PN: 746110


50 State Legal.

This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number:

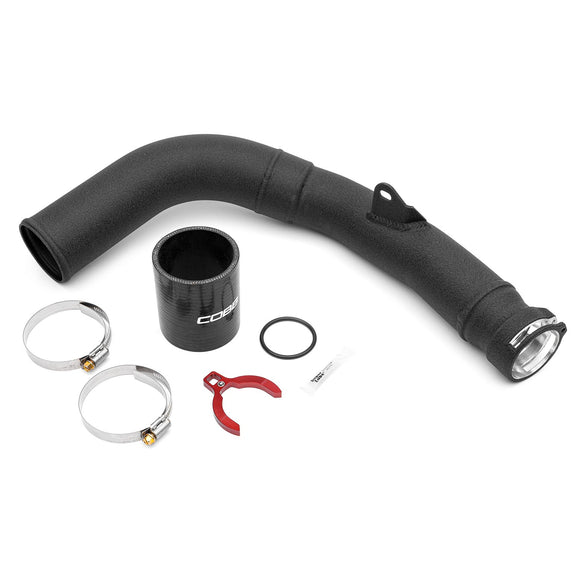

This COBB Charge Pipe fits a wide range of turbocharged FA24 powered Subarus including the 2022+ WRX, 2019+ Ascent, and 2020+ Outback XT/Wilderness. It is constructed of 6061 aluminum tubing that transitions from 2.5" at the lower portion to 2.75" at the intercooler connection. An integrated billet transition smoothly takes diameter from 2.5" to 2.75" to allow for increased flow while maintaining clearance for larger aftermarket radiators. A wrinkle black powder coat finish gives an upgraded yet subtle appearance under the hood. The integrated billet turbo adapter utilizes a machined and anodized clip with ball detent to secure the charge pipe to the turbocharger housing and 5-ply silicone coupler at the opposite end makes for a straight forward and leak free installation.

Tuning is NOT required to safely install this part, but utilizing it in conjunction with the rest of our Stage 2 Power Package and OTS Calibration for the 2022+ WRX will maximize it's potential.


Replace the factory charge pipe on your turbocharged FA24 powered Subaru with the COBB Charge Pipe to both increase airflow and prevent failures over time while retaining a sleek and subtle under-hood vibe.

Factory plastic components can be restrictive in flow as we turn up the power on turbocharged vehicles. The material is also failure prone as it degrades over time with heat cycles.


Subaru Aluminum Charge Pipe Kit WRX 2022-2023, Ascent 2019-2023, OBXT 2020-2023
  • CNC Radiused 6061 Aluminum Tubing
  • Wrinkle Black Powder Coat Finish
  • Integrated Machined 2.5" - 2.75" Transition
  • Bespoke Machined Retaining Clip
  • Compatible with Stock Calibration and COBB OTS Maps


          • 2022 - 2023 WRX
          • 2019 - 2023 Ascent
          • 2019 - 2023 Outback (XT Models Only)
