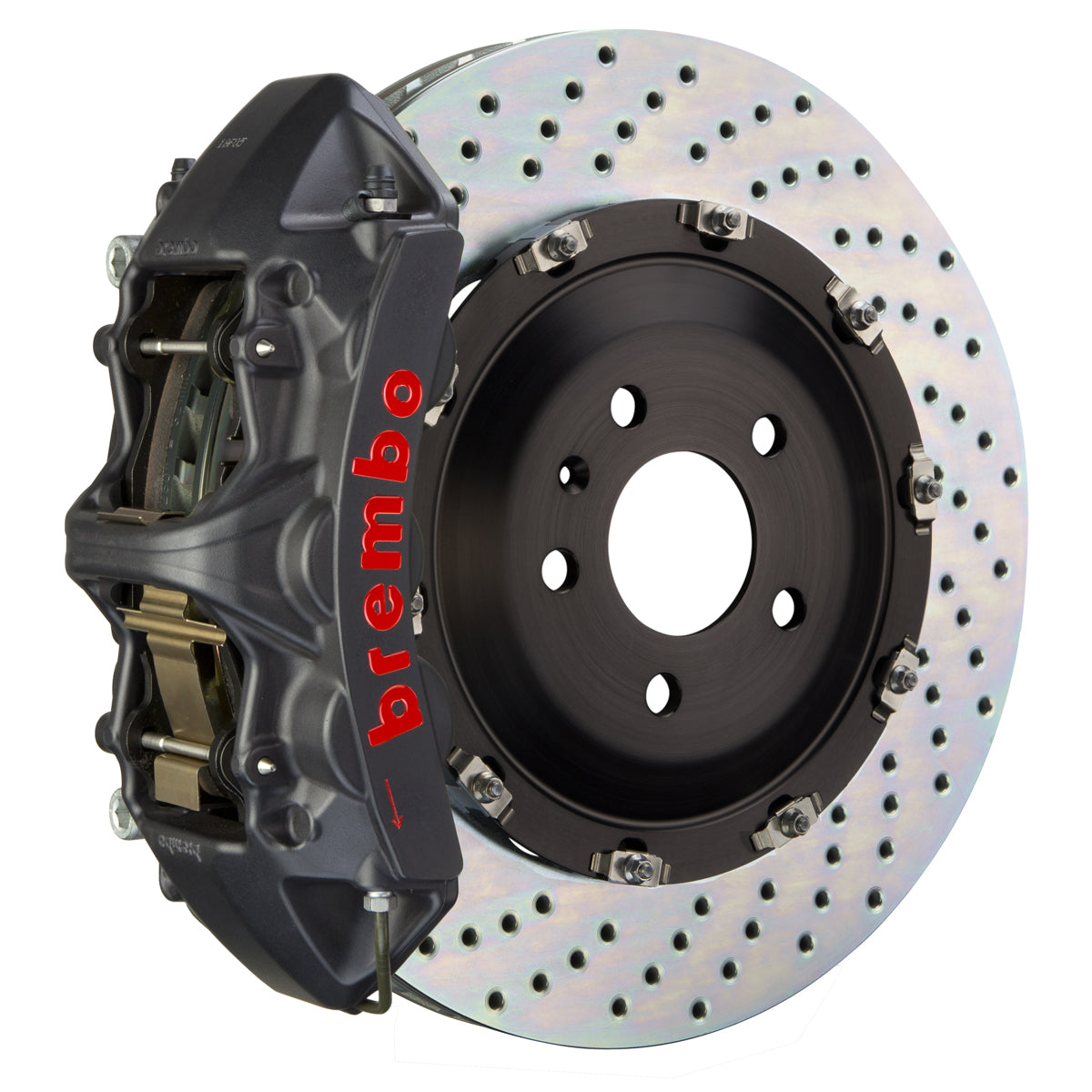

Brembo GT Big Brake System | (F) 6-Piston Cast Monobloc Calipers | 405x34mm (15.9'') 2-Piece Discs

  • $5,495.00


Free Shipping to Lower 48 States


The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.






Product Overview
Product Description: (F) 6-Piston Cast Monobloc Calipers | 405x34mm (15.9'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Front or Rear System Shown: Front

Intended Use:

System Dynamics:



Caliper
Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 6-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert



Disc
Disc Type: Cross Drilled / Slotted / Type 3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 405mm
Disc Width (Measurement): 34mm
Disc Air Gap (Measurement): 12mm
Disc Annulus (Measurement): 62mm
Disc Construction:2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring



Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 107.3 | 95.4



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Application: XC90
