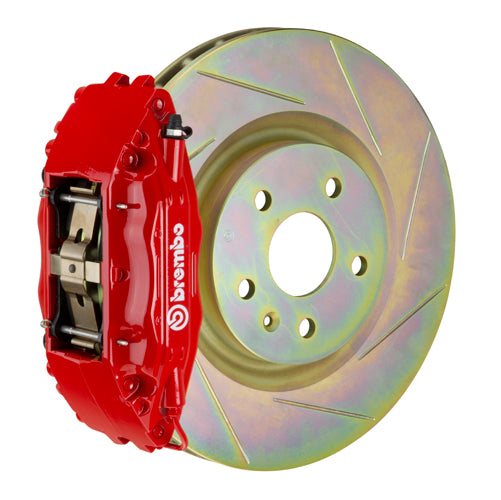

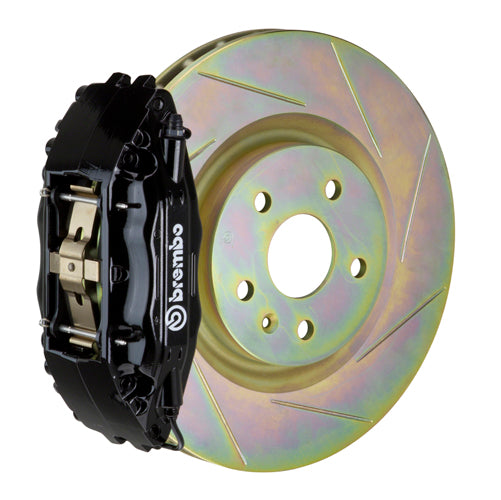

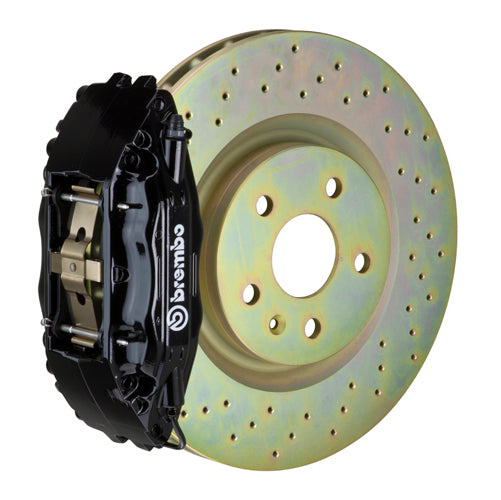

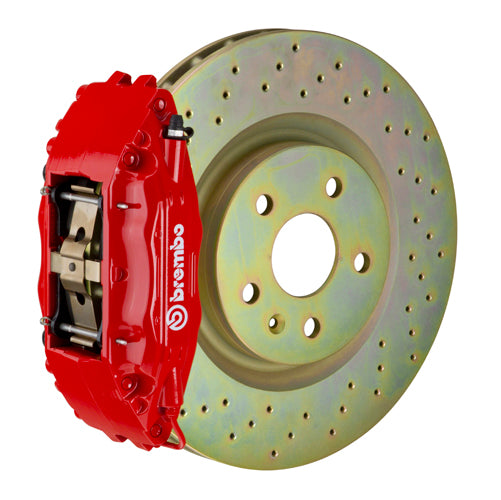

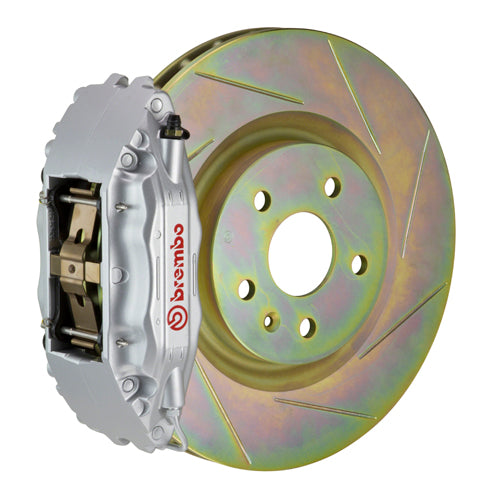

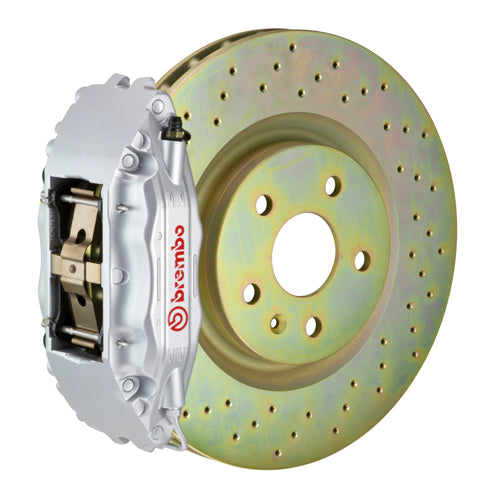

Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT
Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT
Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT
Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT
Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT
Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT

Brembo GT Brake System - 4-Piston | 326x30 mm (12.8') | 1-Piece Disc - FRONT

PN: GT-1H_.6005A

Cross Drilled
  • Red
    1H4.6005A2
  • Black
    1H4.6005A1
  • Silver
    1H4.6005A3
TY1
  • Red
    1H5.6005A2
  • Black
    1H5.6005A1
  • Silver
    1H5.6005A3


The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview
Product Description:(F) 4-Piston Cast 2-Piece Calipers | 326x30mm (12.8'') 1-Piece Disc | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Wheel Fitment: Brake Profile Cross Section
Front or Rear System Shown: Front
Intended Use:
System Dynamics:



Caliper
Caliper Body: Cast 2-Piece Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot



Disc
Disc Type: Cross Drilled or Slotted
Disc Material/Finish: High Carbon / Corrosion Resistant Plating
Disc Diameter: 326mm
Disc Width (Measurement): 30mm
Disc Air Gap (Measurement): 12mm
Disc Annulus (Measurement): 64mm
Disc Construction: 1-Piece Disc
Disc Vane Design (Measurement): Vented Curved 48 Vane



Friction Material
Pad Compound: TS20
Pad Volume / Surface Area: 72 | 77



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Applications: 2013 - 2020 BRZ
