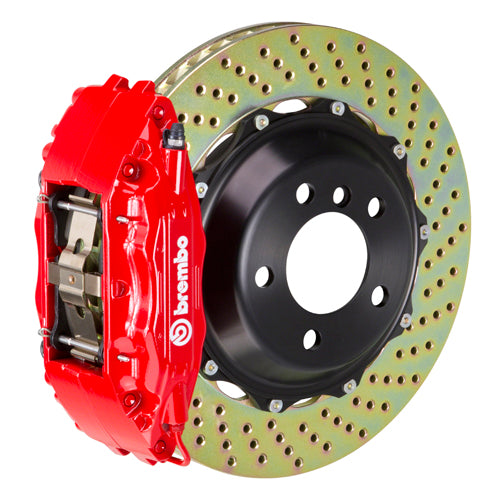

Brembo GT Brake System - 4-Piston | 332x32 mm (13.1") | 2-Piece Discs - FRONT

  • $3,795.00


Free Shipping to Lower 48 States

PN: GT-1H-.7003A

Cross Drilled
  • Red
    1H1.7003A2
  • Black
    1H1.7003A1
  • Silver
    1H1.7003A3
 TY1
  • Red
    1H2.7003A2
  • Black
    1H2.7003A1
  • Silver
    1H2.7003A3


Mann Engineering partnered with Race Technologies to bring you this unique Brembo Brake System that will fit under our Speedline 17" wheels! No more wheel size upgrade just because you want a big brake kit.

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

This Brembo GT Brake System also fits the Scion FR-S.


The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview
Product Description: (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown: Front
Intended Use:
System Dynamics:



Caliper
Caliper Body: Cast 2-Piece Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot



Disc
Disc Type: Cross Drilled  or Slotted
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 332mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 17mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring



Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Application:  2013 - 2020 BRZ
