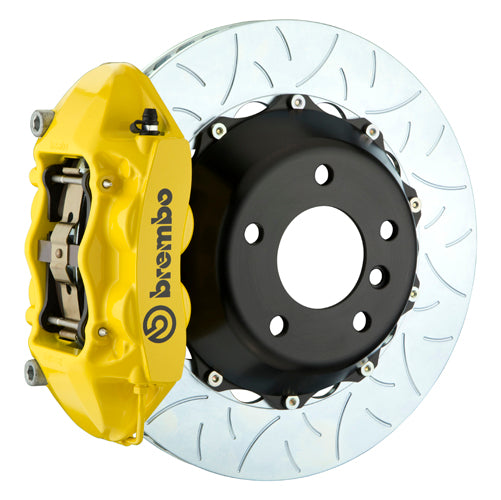

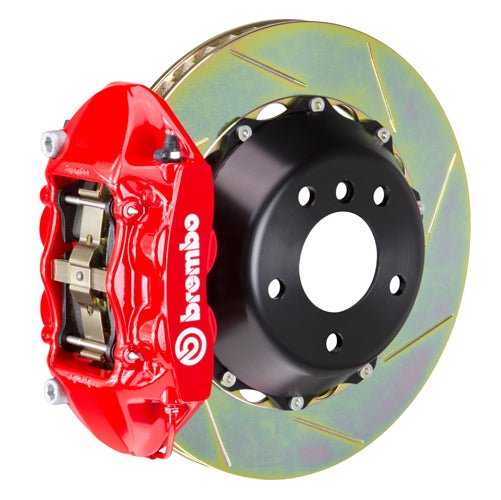

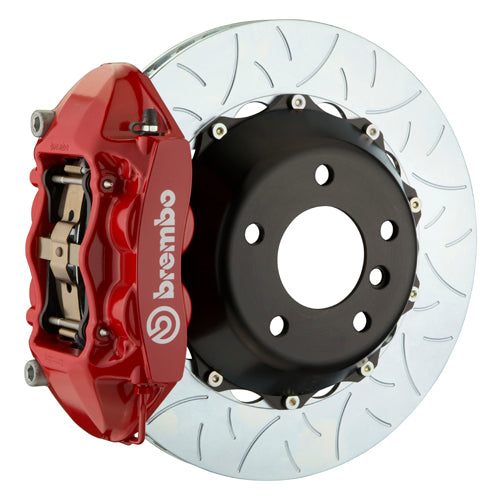

Brembo GT Brake System - 4-Piston Monoblock | 345x28 mm (13.6") | 2-Piece Discs - FRONT

$3,895.00

Quantity

Free Shipping to Lower 48 States

PN: GT-1P-.8002A

Cross Drilled

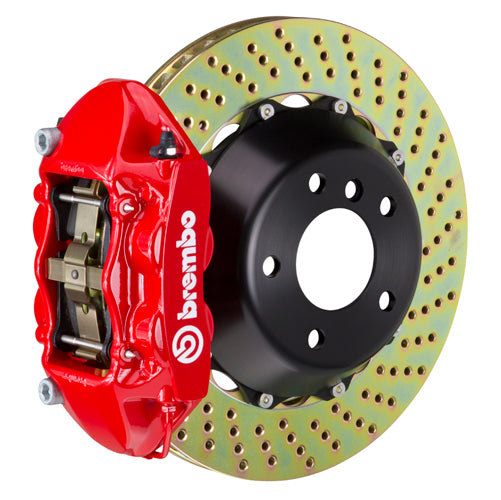

Red

1P1.8002A2

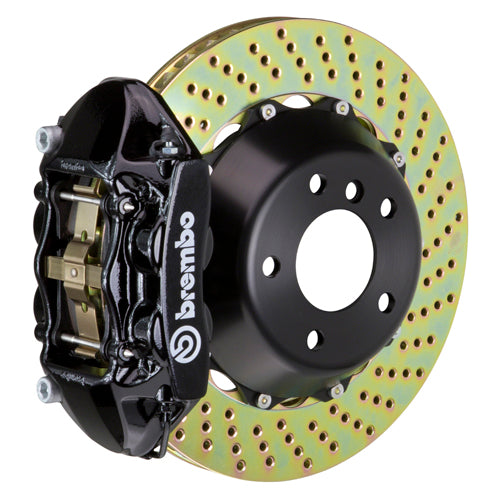

Black

1P1.8002A1

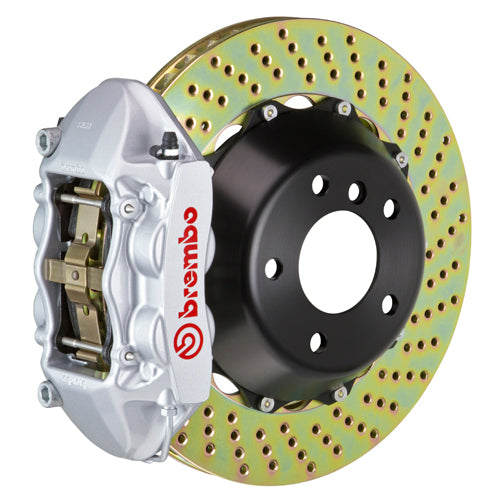

Silver

1P1.8002A3

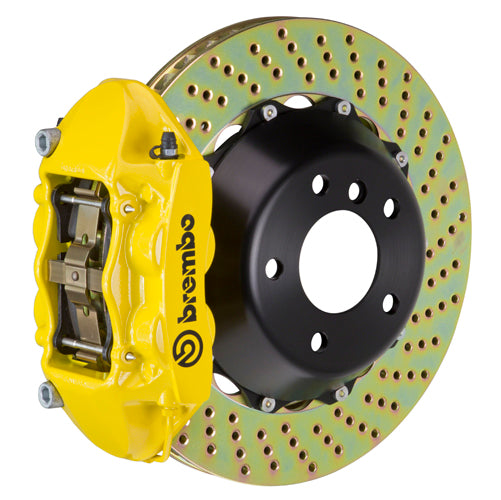

Yellow

1P1.8002A5

TY1

Red

1P2.8002A2

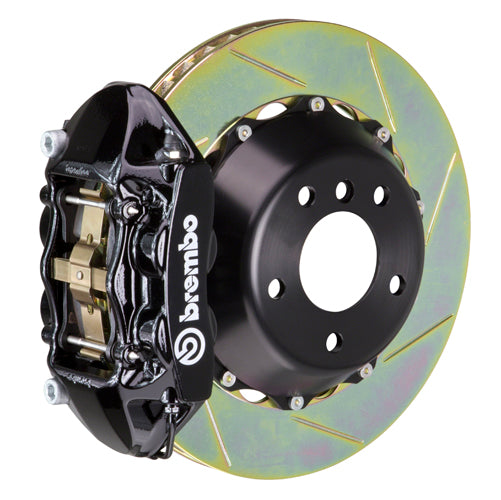

Black

1P2.8002A1
Silver

1P2.8002A3

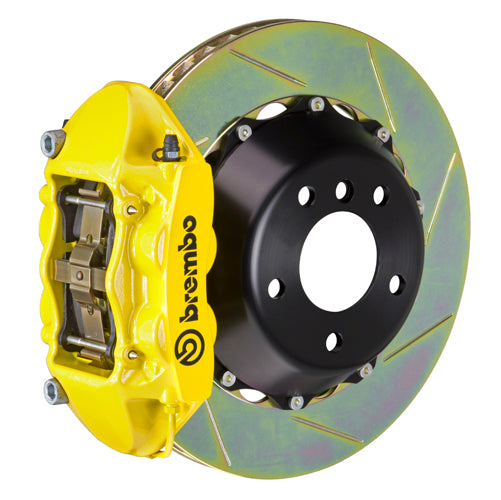

Yellow

1P2.8002A5

TY3

Red

1P3.8002A2

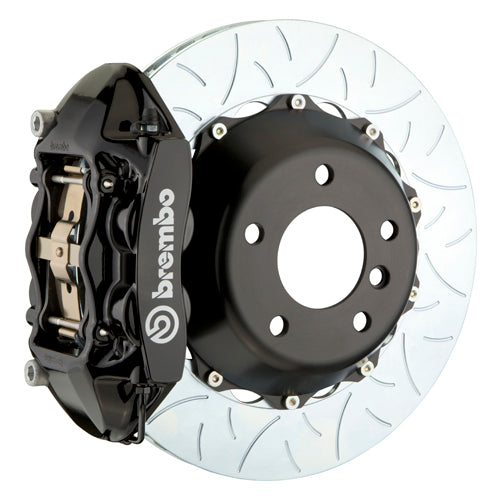

Black

1P3.8002A1

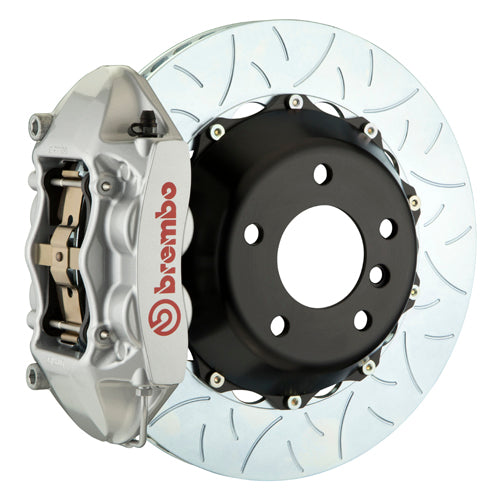

Silver

1P3.8002A3
Yellow

1P3.8002A5

The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview

Product Description: (F) 4-Piston Monobloc Calipers | 345x28mm (13.6") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Wheel Fitment:

How to Measure Wheels for Required Clearance
Brake Profile Cross Section

Front or Rear System Shown: Front

Intended Use:

System Dynamics:

Caliper

Caliper Body: Cast Monobloc Radial Mount

Caliper Piston Configuration: 4-Piston

Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

Disc

Disc Type: Cross Drilled / TY1 / TY3

Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating

Disc Diameter: 345mm

Disc Width (Measurement): 28mm

Disc Air Gap (Measurement): 16mm

Disc Annulus (Measurement): 54mm

Disc Construction: 2-Piece Disc Assembly

Disc Vane Design (Measurement): Vented Curved 48 Vane

Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound: Brembo High Performance FM1000

Pad Volume / Surface Area: 76.4 | 62.1

Included Hardware

Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge

Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

Applications:

2013 - 2020 BRZ
2012 - 2016 Scion FR-S
2017 - 2020 Toyota 86
