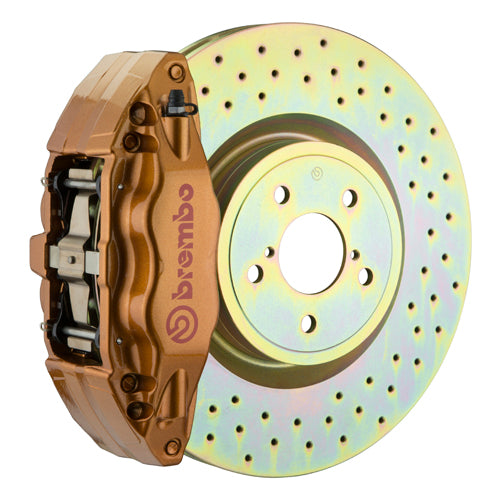

Brembo GT Brake System (Gold Calipers) - 4-Piston 326x30 mm (12.8") | 1-Piece Discs - FRONT

  • $1,995.00

PN: GT-1E_.6002A

Cross Drilled
  • Gold
  • Gold

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

Product Overview
Product Description: (F) 4-Piston Calipers | 326x30mm (12.8") 1-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown: Front
Intended Use:
System Dynamics:


Caliper Body: Cast 2-Piece Axial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot


Disc Type: Cross Drilled or Slotted
Disc Material/Finish: High Carbon / Corrosion Resistant Plating
Disc Diameter: 326mm
Disc Width (Measurement): 30mm
Disc Air Gap (Measurement): 12mm
Disc Annulus (Measurement): 64mm
Disc Construction: 1-Piece Disc
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: N/A


Friction Material
Pad Compound: Subaru OE
Pad Volume / Surface Area: 72 | 77


Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge



  • 2002 - 2014 WRX
  • 2010 - 2014 Legacy
