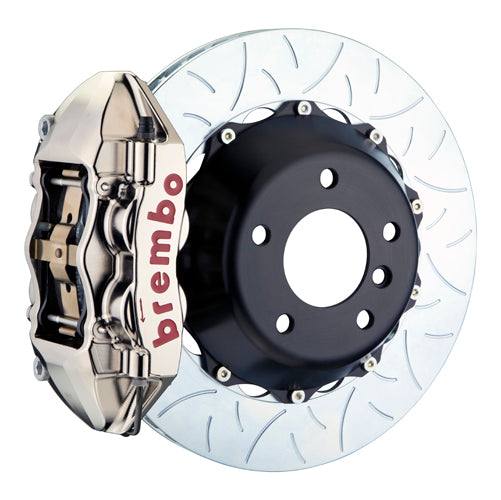

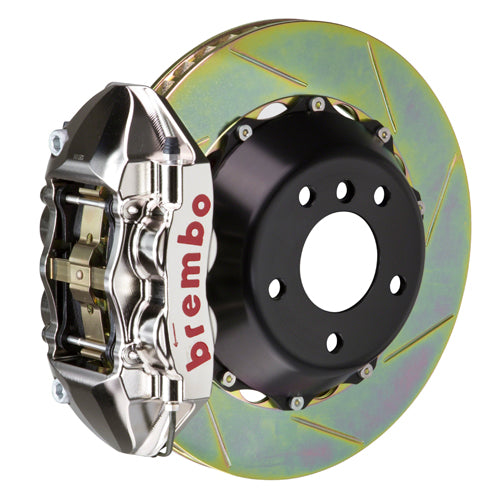

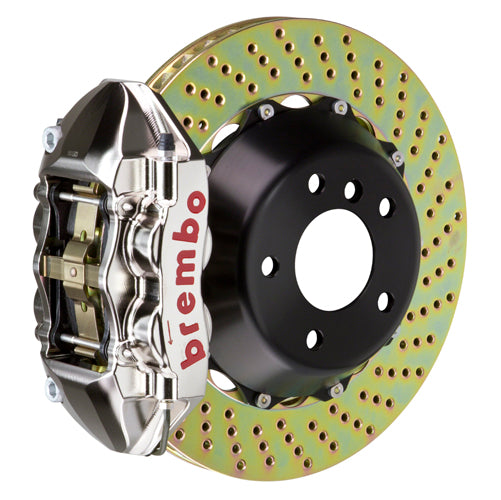

Brembo GT-R Brake System - 4-Piston Monoblock | 345x28 mm (13.6") | 2-Piece Discs - FRONT
Brembo GT-R Brake System - 4-Piston Monoblock | 345x28 mm (13.6") | 2-Piece Discs - FRONT
Brembo GT-R Brake System - 4-Piston Monoblock | 345x28 mm (13.6") | 2-Piece Discs - FRONT

Brembo GT-R Brake System - 4-Piston Monoblock | 345x28 mm (13.6") | 2-Piece Discs - FRONT

Free Shipping to Lower 48 States

PN: GT-R-1P-.8002A

Cross Drilled
Nickel Plated
1P1.8002AR
  TY1
Nickel Plated
1P2.8002AR
TY3
Nickel Plated
1P3.8002AR


The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

Product Overview
Product Description: (F) 4-Piston Billet Monobloc Calipers | 345x28mm (13.6") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Wheel Fitment:
Front or Rear System Shown: Front
Intended Use:
System Dynamics:
Caliper
Caliper Body: Billet Monobloc Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert
Disc
Disc Type: Cross Drilled or Slotted or Type 3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 345mm
Disc Width (Measurement): 28mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring
Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1

Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation



NOTE: All Brembo GT Systems are built to order. Please allow 5-7 business days after placing the order for the item to ship.

 Application:

  • 2013 - 2020 BRZ
  • 2017 - 2020 Toyota 86
  • 2012 - 2016 Scion FR-S



WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
